INTRAORAL CAMERA UPGRADES

Early AcuCam Camera
Adjustable Focus Lens Upgrade Replacement

Increase the depth-of-field of your AcuCam camera by over 400% with the new adjustable focus 90-degree lens from Imagin Systems. With three click positions on the focus ring, you now have the ability to adjust down to a close-up or back out to a smile shot. The new lens is an exact replacement for your current lens, installs easily, and still maintains the same optical performance as your original lens.
The new AcuCam adjustable focus lens is available for both the screw-on and quick-connect type lens. The list price for either lens type is $995. If you choose to trade-in your old lens, a $200 credit will be issued when the lens is returned. Receive the CDA Show Discount that includes a free filter replacement worth $200.

AcuCam SuperCable
A Monocoil Cable Replacement

Imagin has improved the AcuCam monocoil cable design and increased the performance by engineering a better solution for your camera! The new monocoil cable is stronger has less torque and is repairable.

The SuperCable features a soft anti-torque white monocoil shell with added strain relief at each end. Strength is built-in by eliminating the weak “Y” section in your cable and enabling one size of monocoil to be used from end-to-end. The aluminum housing handles the pulling and tugging and directs the data and fiber optic connectors.

AcuCam or VistaCam Camera Teli Digital
Processor; an Analog Processor Replacement

The new Teli digital processor is a direct replacement for your old AcuCam or VistaCam camera’s Teli analog processor. The old analog processors have a high tendency to fail after approximately 10 years, due to the large number of capacitors that secrete an acid substance that etches the traces on thecircuit board and causes shorts.
The new digital processor offers superior quality by allowing its video signals to be processed by a Digital Signal Processor (DSP).

Old Insight or Imagin NewLook 2020 Camera Optics Upgrade
with Imagin’s New HR Intraoral Handpiece

Increase the depth-of-field of your Insight or Imagin camera by over 200% with the new HR Intraoral handpiece with adjustable focus from Imagin Systems. The HR Intraoral optics resolution exceeds 200 line pairs per millimeter with less than 2% distortion, providing unsurpassed clarity with a depth of field from 0 mm to full face and a 72-degree field of view. With an easy to use single hand control of a slider tab with detents, you now have the ability to adjust down to a close-up or back out to a smile shot. Everything in the mouth can now be in focus. The HR Intraoral optics can display images from a fracture, all the way out to a full arch or smile image. Most of the earlier versions of the Insight and all the NewLook 2020 camera systems can be upgraded to the new HR intraoral handpiece.

The new HR Intraoral handpiece with adjustable focus upgrade is available for the Insight or Imagin NewLook Cameras. The list price for the new optics is $3,495. Receive the CDA Show discount that includes no charge for labor worth $100 to replace your old handpiece and a free tune-up worth $220.

Counter-Top Camera Conversion to Wall-Mount

Convert your old Insight or AcuCam camera from a counter-top to a wall-mount.

Insight Camera Monocoil Cable Upgrade

Imagin has improved the Insight monocoil cable design and increased the performance by engineering a better solution for your camera! The new monocoil cable is stronger has less torque and is repairable.

The new Cable features a soft anti-torque white monocoil shell with added strain relief at each end. The new handpiece cables can replace all Insight monocoil and silicone cables and are the same cables that are used on the NewLook 2020 camera.

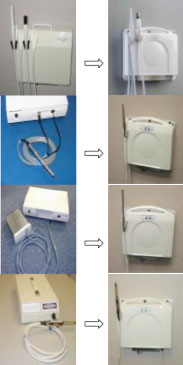

Re-package your Old Camera to the NewLook 2020 Console

Bring your current Insight, AcuCam, Concept III or Other Camera System up to the level of the Imagin’s NewLook 2020 camera system. This upgrade incorporates the universal Insight style wall-mounted docking stations for multiple operatory sharing and creates easy networking capabilities for both analog and or computer digital type systems. Eliminate carts and bulky systems that clutter-up your operatories by upgrading your camera today!

The NewLook 2020 Console Assembly Includes:

• The new-style optical sensor hanger for powering the camera on & off
  Flat-panel membrane keyboard for controlling the on/off functions of the camera light, electronic arrow on center of image and the no-color/no-light mode for capturing x-ray images from a light box

• Universal counter-top/docking station feet (4ea.) for easy docking

• New Power/Arrow logic control board with 50-pin connector interface for docking both video and S-Video outputs

• New high-output light source assembly (dual-type for Insight) and high-efficiency cooling system in the new-style sub-chassis

• Optional on-board 12 Frame Memory Card Ready

AcuCam Concept IV Console Replacement/Upgrade

The Imagin HR Compact console is a direct replacement for your Concept IV console. The HR Compact console can be easily mounted on walls, cabinets or counter tops and has a video, S-video and an optional USB 2.0 output.

Handpiece Replacements for Other Cameras

AcuCam Concept IV Handpiece Replacement

The Imagin HotRod intraoral handpiece is a direct replacement for your Concept IV camera handpiece. The HotRod intraoral handpiece provides improved close-up clarity and has a heated lens tip that prevents fogging when inside the mouth. The strong lightweight polycarbonate handpiece includes a sleek tapered lens tip for capturing images in the most difficult areas and the focus adjustments are positioned for single-hand operation. The HotRod extraoral handpiece is also compatible.

Insight & Imagin NewLook H/P Replacement

The Imagin HR Intraoral handpiece is a direct replacement for your old Insight or Imagin NewLook 2020 camera handpiece. The HR Intraoral handpiece provides improved close-up clarity and has a heated lens tip that prevents fogging when inside the mouth. The strong lightweight polycarbonate handpiece includes a sleek tapered lens tip for capturing images in the most difficult areas and the focus adjustments are positioned for single-hand operation.

ImageCam/ViperCam Handpiece Replacement

The Imagin HotRod intraoral handpiece is a direct replacement for your Dentrix ImageCam or ViperCam camera handpiece. The HotRod intraoral handpiece provides improved close-up clarity and has a heated lens tip that prevents fogging when inside the mouth. The strong lightweight polycarbonate handpiece includes a sleek tapered lens tip for capturing images in the most difficult areas and the focus adjustments are positioned for single-hand operation.

AcuCam+ & Concept III Handpiece Replacement

The Imagin HotRod intraoral handpiece is a direct replacement for your AcuCam or Concept III camera handpiece. The HotRod intraoral handpiece provides improved close-up clarity and has a heated lens tip that prevents fogging when inside the mouth. The strong lightweight polycarbonate handpiece includes a sleek tapered lens tip for capturing images in the most difficult areas and the focus adjustments are positioned for single-hand operation.
