VIDEO NETWORK EQUIPMENT

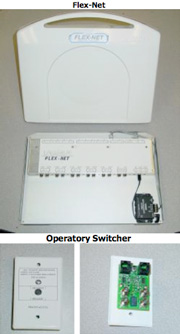

FLEX-NET VIDEO AND INFRARED MULTIPLEXER

Imagin Systems FLEX-NET Video and Infrared Multiplexer System provides the dental practice with a low cost way to network your Imagin, Insight, DENTSPLY New Image’s AcuCam, Concept III or Polo, ViperCam and other intraoral cameras and printers in every operatory without having to move a cart full of equipment between operatories. The FLEX- NET Multiplexers are very easy to install and can be easily re-configured to allow for expansion with three different models within the same enclosure. The FLEX-NET Multiplexers also have unlimited expansion to more FLEX-NET enclosures. The FLEX-NET VM5/IR can control one camera and one printer in up to five operatories or up to four cameras and one printer in up to four operatories. The FLEX-NET VM9/IR can control one camera and one printer in up to nine operatories or up to eight cameras and one printer in up to eight operatories and the FLEX- NET 2xVM5/IR is two VM5/IR multiplexer modules in one enclosure. When multiple cameras are sharing one printer, the addition of the FLEX- NET Switcher Control Panel is required in each operatory. The FLEX-NET Multiplexers respects patient confidentiality where the only monitor that can display the image of your patient is the one in that operatory. The infrared control unit allows wireless remote control of centrally located video devices, such as video printers, VCR’s DVD, DSS, Laser Disc and CD-I Players. Optional wired footswitch control is also available in each operatory for capture and multi-image select, retake or print.

Infrared Receiver
291-80 CFL Friendly IR Receiver:

This version of the 291 has been specifically designed to have great immunity to many sources of infrared interference and to have exceptional IR reception range. In particular, it has high rejection of IR interference generated by compact fluorescent lights (CFL) and will also operate in direct sunlight!

Specifications:

• IR modulation frequency bandwidth: 30 – 60 kHz
• Adjustable IR carrier frequency: 32 to 56 kHz (allows matching to actual component for optimum performance)
• Normal reception range: > 70 feet

RF Modulators

3 Channel TriplePlay™ RF Modulator
Use the TriplePlayTM to modulate three audio/video sources onto three separate TV channels simultaneously.

1 Channel MicroModulator™ RF Modulator
Use the MicroModulatorTM to modulate one audio/video source onto one separate TV channel.

Features:

• Combines with existing TV channels
• SUHF & Cable coverage
• One button setup
• Precise digital cannel control
• Internally generated test pattern
• Memory retained during power outages
• Rugged aluminum enclosure
• Includes Wall Transformer

Great for security surveillance, audio/video distribution and video monitoring. View cameras, VCRs, laserdiscs, DVDs or satellite receivers on the TV channels you choose and distribute them through all the TVs in the home or office.

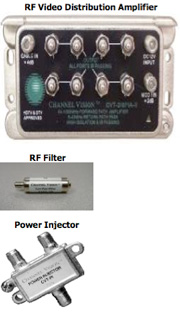

2 input/8 output RF Video Amplified Splitter

Channel Vision amplified splitters offer high performance, versatility and a “future ready” solution for video distribution. Unlike ordinary RF splitters, the CVT-2/8PIA amplifies the incoming television signal providing a 4 dB gain to each of eight outputs compared to an 11dB loss associated with most 8-way splitters. This 15dB advantage insures a strong and balanced signal throughout the system as well as insuring no signal loss on cable runs up to 100 feet long. It also features a bi-directional return path for use with interactive TV and high-speed cable modems. The internal combiner provides a convenient way to add a modulated channel and has its own separate amplifier circuit providing a 2dB gain. An optional power injector (model #CVT-PI) can be used to power the CVT-2/8PIA from a remote location.

Sony UP-20 Color Video Printer

The Sony UP-20 color printer successfully combines high quality with affordable pricing. The UP-20 prints near A6 color images in approximately 16 seconds, (using UPC-21S media). The printer’s new compact design allows for easy integration with other video equipment. The UP-20 is an ideal choice for the dental market, as well as, office or scientific lab applications.

The Sony UP-20 printer features include:

• Superb Print Quality and Color Reproduction at approximately 400 DPI Resolution
• Compact size
• High-Speed Printing, near A6 Size
• Four Frame Memory
• Versatile Analog Video Inputs and Outputs
• Convenient Remote Control Capability
• RS-232C Interface
• 2 or 4-Split Image Print Mode
• Monitor Loop-Through for System Power Saving
• World Wide Power and Video Capability

Mitsubishi CP-910U Color Video Printer

The Mitsubishi CP-910U Color Video Printer is a high-speed color printer for photo quality output in just 12 seconds! In a revolutionary new system, the ink sheet rolls feature built-in Color Imaging Chips that contain specific data about the media. The printer uses this information to accurately control color characteristics. As a result, the CP-910U delivers high-grade printing with even more stable picture quality. The Color Imaging
Control Chip also monitors the amount of remaining ink sheets and can be set up to give you an audible warning.

Key Features:

• Sublimation thermal transfer
• Fastest printer in it’s class, S size: 10 sec’s, L size: 20 sec’s
• 256 gradations per color
• 16.7 million display colors
• Jam Free, roll paper type
• 325 dpi thermal head resolution
• Weighs 25 pounds
• 8 Megabyte, 3 frame memory
• S-video/composite video interface
• Dimensions 11.1W x 6.0H x 15.8D in.

Mitsubishi CP-31W Color Video Printer

The Mitsubishi CP-31W Color Video Printer has taken medical imaging to a new level. Equipped with high-performance DSP engine and a 423 dpi thermal head, the CP-31W provides optimum print quality with vivid, smear-free gradation. It is also exceptionally fast – 16 seconds for S-size and 25 seconds for L- size output. The cp-31w is equipped with a selection of gamma curves to handle ultrasonic diagnosis systems, endoscopes and other sophisticated medical instruments, simplifying user gamma curve fine-tuning and color adjustment. For application versatility, the CP-31W enables you to choose between multi-prints split into 2 or 4 frames.

Key Features:

• High speed output – 16 seconds for S-size prints
• Equipped with high-performance DSP engine and 423 dpi thermo head
• Vivid, smear-free gradation
• Large capacity 32 MB memory engineered to handle 8- frame memory
• Multi-print function for application versatility
• Low noise design
• Easy-to-use, convenient front access
• Long lasting quality and reliability
• S-video/composite video interface
• Dimensions (W x H x D) 8.35” x 4.92” x 16.73”

RF Remote for Video Color Printer:

3-Function Wired & Wireless Foot-Pedals

These new printer foot-Pedals maximize your productivity while relieving your hands and arms. The large center pedal has minimal travel for your most heavily used key-action. The outer “piano-key” pedals offer two
additional actions without having to search for a second or third footswitch on the floor! Network foot-pedals are also available.

RF Remote for Video Color Printer

Coming soon!

MediCap™ Medical Digital Recorders

Medical Digital Video and Still Image Capture:

• Captures & stores digital video and images to a USB flash drive
• Easy installation
• Little or no training needed
• Extremely low cost
• Small, portable, and rugged
• Powerful, friendly features

The MediCap recorders easily save digital video and images to a USB flash drive from any standard video source including ultrasounds, endoscopes, intraoral cameras, surgical microscopes, and most video imaging devices.

Capture images with the touch of a button

This low-cost, revolutionary device is simple to install and operate. Just plug the MediCap into your imaging equipment’s video connectors. Press the Capture button (or use a footpedal) and your videos and still images will be saved to a USB flash drive. When you’re finished, remove the drive and insert in any USB compatible device such as a PC, Mac, laptop, or webpad to view, enhance, and share the images.

The Easy Way to Go Digital

Now you’re no longer limited to paper or film-based images. You can archive digital video and images digitally, e-mail them to colleagues, post them on secure hospital network, or include them in PowerPoint presentations.

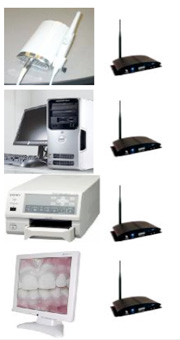

Wireless 5.8GHz 8-Channel Camera Solution

ADVANTAGES:

• Avoids Interference from crowded 2.4GHz ISM band, including 802.11 wireless LAN, WiFi, Bluetooth and other wireless products
• Delivers High Resolution Real-Time Video
• 8 User Selectable Channels
• Operate up to 8 wireless cameras, without cross-interference
• Range: Up to 800 feet line of sight
• Easy Connect Power, Video, and Stereo Audio Output Terminals
• FCC, Industry Canada and CE Approved
